Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)

Product Categories

Kronz (guangzhou) Electronics Co., Ltd.

Contact Now

Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)

Name: SlotType Photoelectric Sensor NPN BSM202N Light Source GaAs IR LED940nm
Brand: KRONZ
Price: 1 USD

Quality Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm) for sale

Brand Name : KRONZ

Model Number : BSM-202N

Certification : CE

Place of Origin : Guangdong，China

MOQ : 1

Price : Negotiable

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Detection Mode : Light ON during power-on, Light OFF during detection

Repeatablity : ＜0.03mm below

Switching Capacity : 0~200mA

Residual Voltage : Below 3V (at load current 100mA, with 2m wire length)

Connection Method : Connector type, customizable special drag chain cables

Protection Circuit : Reverse Polarity Protection、Overcurrent Protection、Short-Circuit Protection

Insulation Resistance : ≥50 MΩ (measured at DC 500V megohmmeter) between charging terminal and housing.

Ambient Temperature : Operating：-25~70°C（non-condensing、Ice-resistant）

Ambient Humidity : Operating/Storage Humidity: 35~95% RH (non-condensing)

Contact Now

The BSM-202N is a compact slot-type photoelectric sensor designed for precise object detection in automated systems. Utilizing a gallium arsenide infrared LED with a 940nm wavelength, it provides reliable and accurate sensing performance. This model features an NPN open collector output, making it ideal for integration into a wide range of industrial control circuits.

Features:

Detection Type: Slot-type through-beam sensor for high-speed object detection
Output Type: NPN open collector
Light Source: GaAs IR LED (940nm) for stable performance and low interference
Slot Width: Optimized for detecting small parts or edges
Fast Response Time: Ideal for high-speed automation environments
U-Shaped Compact Design: Built-in emitter and receiver simplify alignment and installation.
Infrared Light Source: Stable operation under ambient lighting conditions.
Durable Build: Resistant to shock, vibration, and industrial contaminants.
Easy Mounting: No need for separate alignment of emitter and receiver.

Technical Parameters

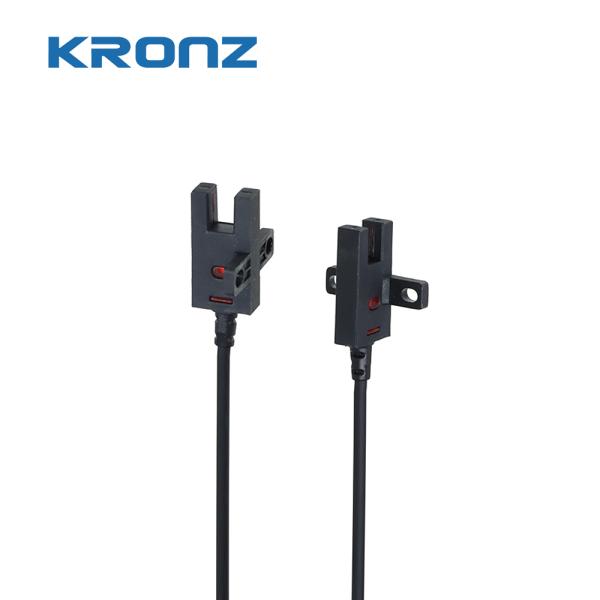

Product Images

Slot-Type Photoelectric Sensor NPN BSM-202N Light Source GaAs IR LED（940nm)

Product Dimension Drawing
